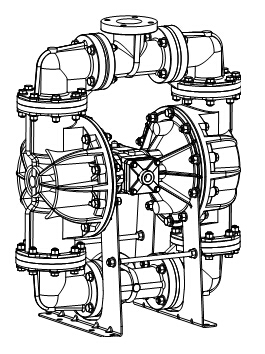

E3 - 3” Non-Metallic Bolted Pump – Metallic Center
ELASTOMERIC AND TPE FITTEDFlow Rate
Adjustable to . . . . . . . . 0-238 gpm (901 lpm)
Port Size
Suction . . . . . . 3" ANSI, 150 Class (DIN 50)
Discharge . . . . 3" ANSI, 150 Class (DIN 50)
Air Inlet . . . . . . . . . . . . . . . . . . . . . 3/4" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . . 1" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . . 20' (6.1 m)
Wet . . . . . . . . . . . . . . . . . . . . . . . 25' (7.6 m)
Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . 0.71" (18 mm)
Noise Level . . . . . . . . . . . . 96 dB(A)
Shipping Weights
Polypropylene . . . . . . . . . . .231 lbs (105 kg)
PVDF . . . . . . . . . . . . . . . . . .315 lbs (143 kg)
